Viewing Information about a Section or Item
When a Section or data item is selected, the Information icon is enabled. All the information held for a section is viewable, including section length, description, road name and road number when held in project data. Item information will include the item’s chainage against the section along with full item-specific details.
To see information about a Section or item:
- In Explorer, navigate to the required Section, or to the data item on a Section, at Interaction level.
- Select the Section or item by clicking on it.

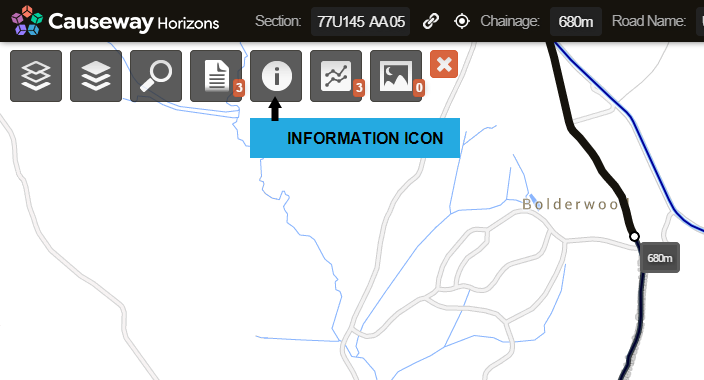

- Click the Information icon.

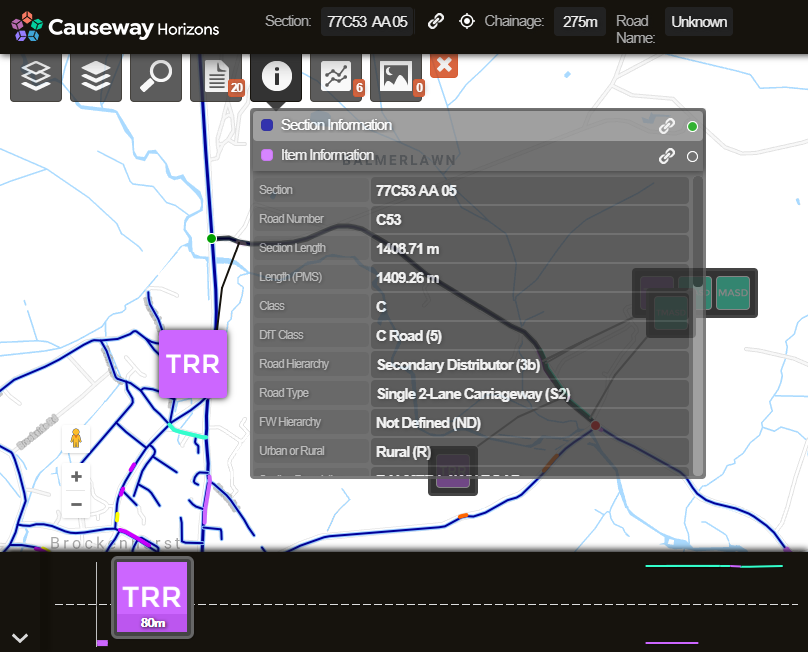

The Section information is displayed in a pop-out window.
If an item is selected on the map, the information displayed can be toggled to show either Section Information or Item Information using the drop-down header labels.
