Defining Threshold Bands
For a full description of all of the stages involved in creating a Treatment Set, see Creating a Treatment Set - Process Overview.
To define the threshold bands for a Treatment Set
- Navigate to the Trigger Editor:
Analysis > Treatment Sets drop-down > Add Treatment Set > Choose Parameters > Configure Thresholds.

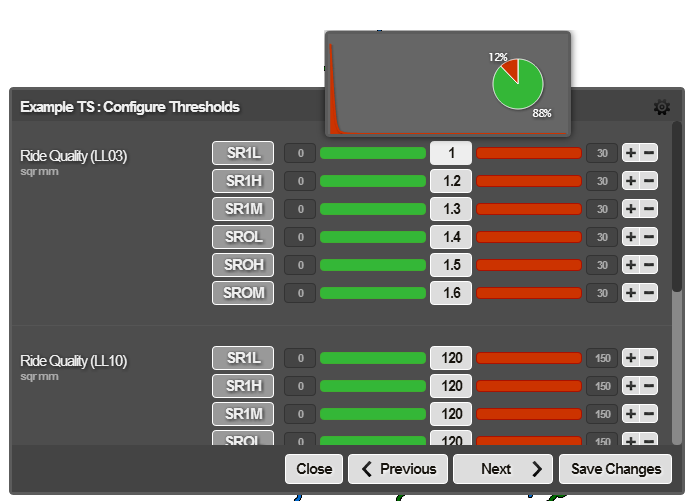

The Configure Thresholds window opens.
-
Set the threshold bands for each parameter for each Asset Group:
-

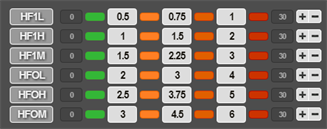

To add or remove threshold bands—use the +/- button respectively.
- To see the condition value distribution for a parameter and a pie chart giving the percentage of current values within each band—hover over the coloured band for the parameter.
- Edit the value for a band—click in the numeric boxes and editing the values. Adjusting these thresholds changes the sensitivity of the Treatment triggers that depend on them. The thresholds should therefore be selected carefully so not to over or under sensitise the triggering process. The boxes to the left and right of each colour banding show the minimum and maximum allowable values for the parameter (as defined in the Parameters drop-down).
- When the thresholds for the parameters are selected, click Next.
- Continue defining the Treatment Set. See Adding a Treatment Set.
