Viewing Treatment Set Results

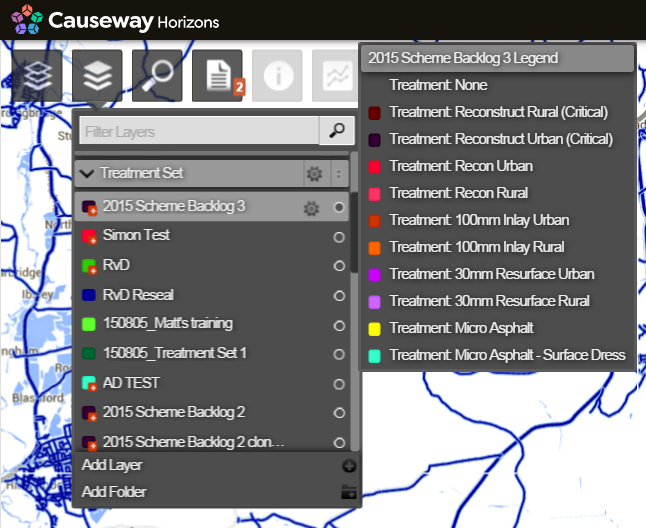

A Treatment Set that is generated in Horizons is available to view as a data Layer in the Treatment Sets folder in the Layers drop-down. You can see the Treatments on the map and in reports.

Horizons lets you export a Treatment Set layer. See Exporting a Layer.

Note

Be aware that a Treatment Set is a complete and unconstrained list of required works before any priorities and strategies are applied. It may be more useful to view the results of a Works Plan than of the Treatment Set. See Viewing Works Plan Results.

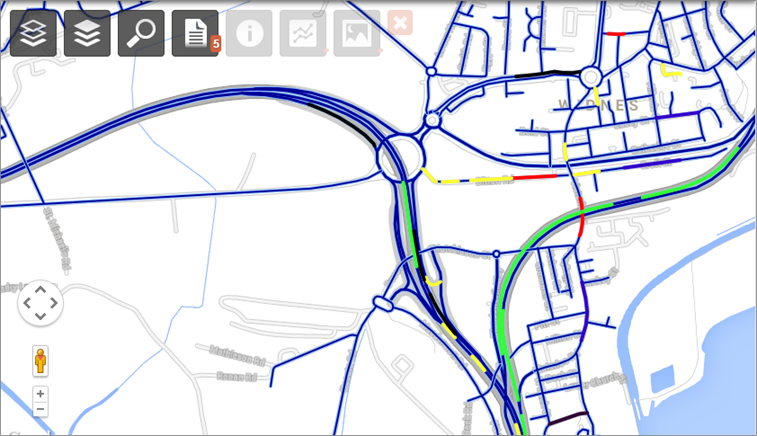

To view a complete set of identified Treatments on the map

• In Explorer, click the Layers icon and select the required Treatment Set Layer. The Treatments can be seen on the map.

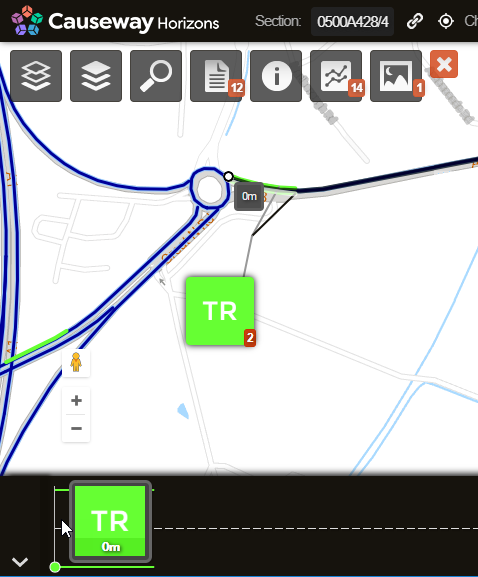

To view Treatment Item for a Section

• In Layers > Treatment Sets, select the required Treatment Set.
• Navigate to and select the required Section at Interaction level. The Treatment Item call-outs are displayed.

• Click on the call-out, and click the Information icon.

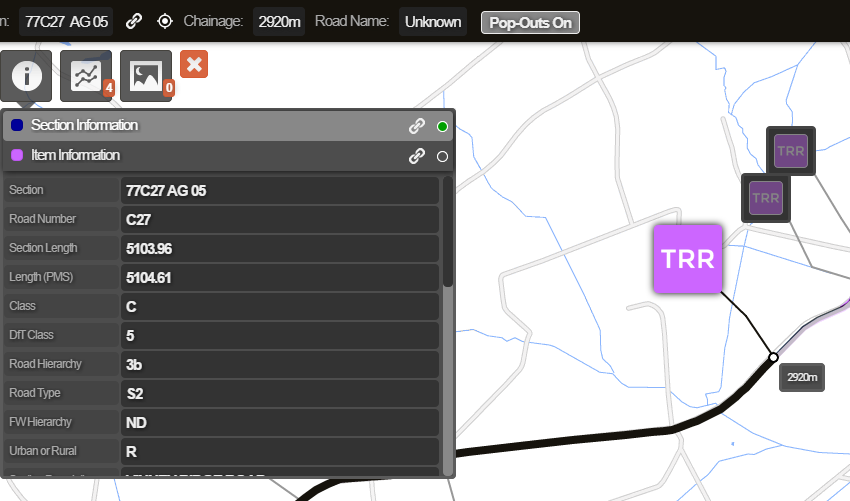

The Section Information window opens. It has two tabs: Section Information and Item Information. The Item Information page provides information about the possible Treatment for the Section, including the Treatment length.

To view Condition Parameters for a possible Treatment length in the graphing panel

• In Layers > Treatment Sets, select the required Treatment Set .
• Navigate to the Section that contains a possible Treatment and click to select the Section.
• Click on the Treatment Item using its call-out. Sections with identified Treatment lengths are visible in the strip view.
• Click the Graphing icon and select the Condition Parameter. The survey Condition Parameters on the Section are displayed in the graphing panel, alongside the strip view.

To view the configuration of a Treatment Set

• In the Analysis module, click the Treatment Sets icon.

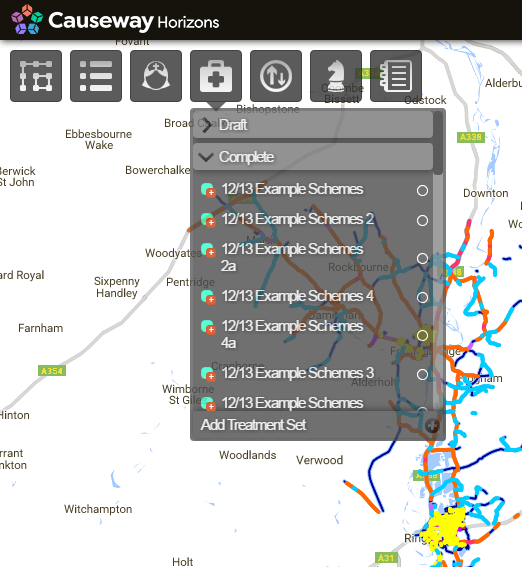

The Treatment Set drop-down opens. The configuration of the completed Treatment Set is listed in the Complete folder in the Treatment Sets drop-down.

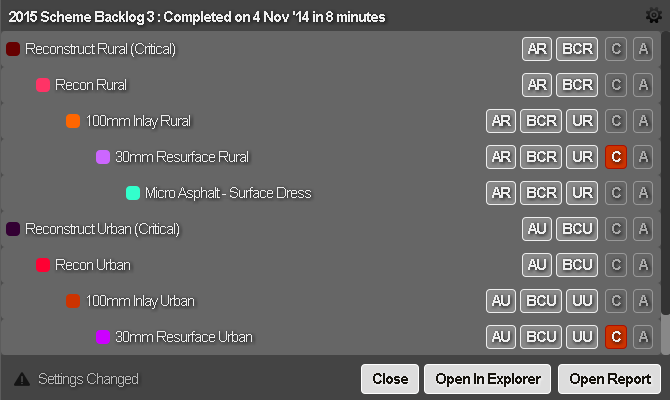

• You can see Treatments hierarchy, access the Treatment Set configuration or select Open in Explorer and Open Report buttons.

• Clicking on Treatment will allow you to see rules used during the Treatment Set creation. For more details and all Treatment Set inputs refer to its report.

The configuration of the Treatment Sets are displayed.
