Selecting a Network

Select the underlying Network layer​

Your Horizons project will contain one or more Networks. Each one represents a set of assets under your organisation's jurisdiction. Only one Network Layer can be selected at any time. The currently selected Network is indicated by the green circle beside its name.

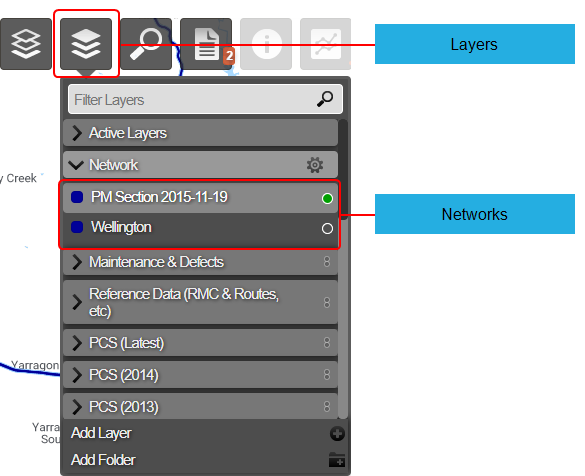

To select a Network, click the top Layers icon, open the Network folder, and then click the desired Network.

Image Description

The chosen Network will appear in the centre of the map. Sections on the selected Network become interactive as you zoom into the map. All other spatial data that you select is then referenced against the selected Network and appears above it on the map. Any Reports that you select are also run for the selected Network by default.
